Experience eco-efficiency, productivity, safety, and a modular battery solution designed for your operational needs with the Kalmar ERG450.
The time is now to go electric
Kalmar’s electrically powered reach stacker with lifting capacities up to 45 tonnes, can help improve the eco-efficiency of your operations while maintaining the highest levels of productivity and safety. With a range of modular battery options and charging solutions, we can work with you to design a solution that will deliver for your business.
Kalmar's most sustainable reach stacker
Kalmar has introduced new sustainability options for its customers:
Kalmar, using SSAB Green Steel, have designed and built Kalmar's most sustainable reach stacker by significantly reducing the carbon emissions produced during the manufacturing process.
By replacing almost half of the steel with green steel in the manufacturing process Kalmar has been able to significantly reduce the levels of embedded carbon in its electric reach stacker, making it Kalmar's most sustainable and eco-efficient reach stacker available.
Our goal is to make every Kalmar Reachstacker as sustainable as possible, which is why we are also introducing a new emission-reducing counterweight made from unprocessed naturally heavy material to replace the standard cast-iron counterweight, which will further lower the embedded carbon in the manufacturing of our entire reach stacker range. By providing Eco Driving Training to operators, promoting optimal tire pressure with our Tyre Pressure Monitoring System and by using long lifetime hydraulic oil you can further reduce your carbon emissions and improve the sustainability of your reach stacker.

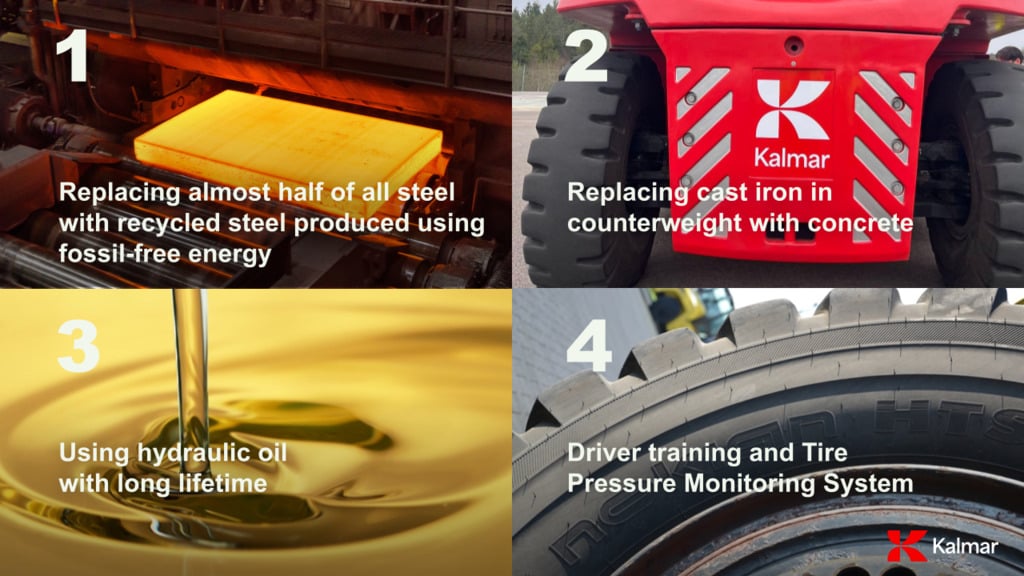

What makes Kalmar’s most sustainable reach stacker:
Become Kalmar Eco Hero
Every Kalmar Electric Reachstacker you take delivery of will help improve the sustainability of your operations and cut your carbon emissions. To recognise the commitment that you and your business are making in building a more sustainable future, you will be awarded the prestigious Kalmar Eco Hero Award. (The first electric reach stacker delivered to Cabooter Group.) This award represents the efforts you are making in cutting your emissions and the appreciation from our team that you are helping to build a better, more sustainable future for us all.
Are you Kalmar’s next Eco Hero, what are you waiting for?

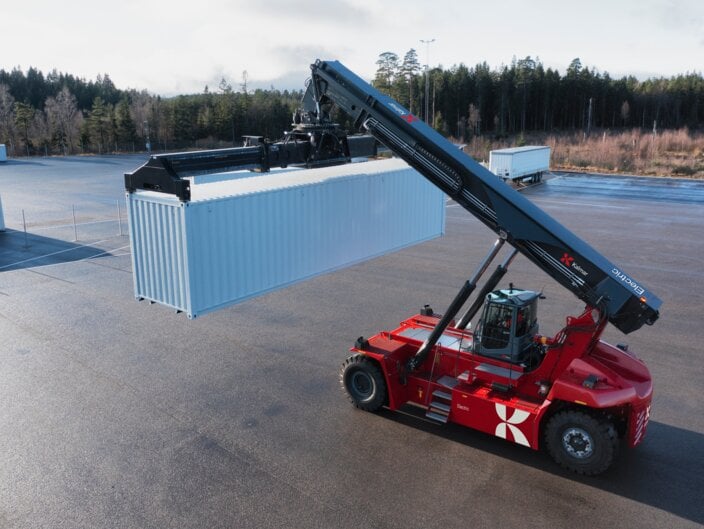

Kalmar's Electric Reachstacker
Shifting to electric? Your questions answered.
Technical information
| Technical info | カルマー ERG450 |
|---|---|
|
Lifting capacity (kg)
|
最大 45000 |
|
Wheel base (mm)
|
6000〜7500 |
|
Cab options
|
エゴ |
|
スタッキング（トップリフト）
|
最大高さ6、奥行き4 |
|
モーター
|
ボッシュレックスロス トラクションモーター 133kW/358 kW |
|
伝送
|
ボッシュ レックスロス |
|
電池
|
リチウムイオン、3つのオプション (400～800 kWh) |
|
モデル
|
トップリフト、インターモーダル、ツールキャリア |
Eco-efficiency built in
Being battery powered, your electric reach stacker will produce zero carbon emissions at source, making it cleaner and safer to operate.
You can lower your reach stacker carbon emissions even further by:
- Using green energy sources where available
- Generating your own power to charge the batteries.
Getting an electrically powered reach stacker is only the start of your eco-efficiency journey. We will be with you every step of the way.
Productive by nature

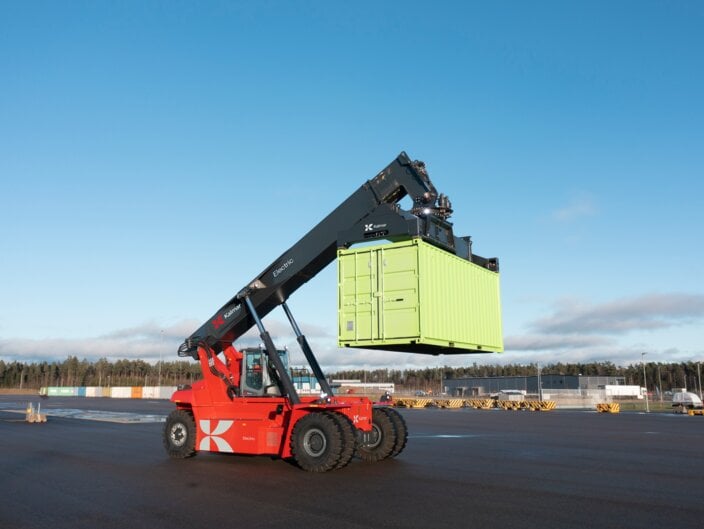

With an electric powertrain, your drivers will notice a big difference with faster and smoother acceleration and more responsive handling while still being able to lift up to 45 tonnes efficiently and safely.
Less time will be spent servicing and maintaining your electrically powered reach stacker as it has less moving and mechanical parts, plus you will be able to keep it running optimally within a broad range of temperatures with Kalmar’s Thermal Management System fitted as standard.
Kalmar’s Thermal Management System keeps your core battery temperature at 25-30°C within the following temperature range:
- Minimum -30°C
- Maximum 40°C.
Safety in focus
Kalmar’s range of electrically powered reach stackers offer:
- highly responsive handling and superior visibility from the cabin, helping to keep your driver safe and in control at all times
- reduced cabin noise and vibrations as our electrically powered reach stacker’s driveline is extremely quiet and smooth, reducing cabin noise
- an electrically powered high voltage system with encased and shielded high voltage lines. Should any connection be interrupted, the whole system will automatically shut down, keeping your team safe
- a large range of safety options available that can further enhance the safety of your drivers and reach stackers.
Modular by design
Batteries and chargers are a big part of your overall investment, making it critical you get a solution that is matched to your operational requirements. Which is why Kalmar has taken a modular approach to our battery and charging solutions.

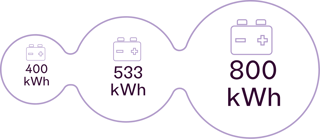

There are three different battery options:

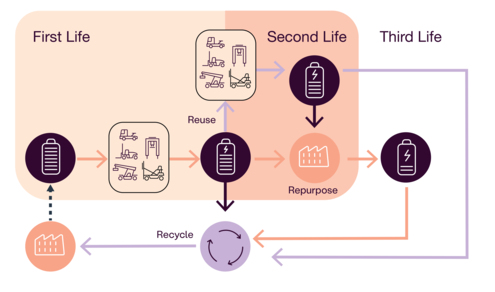

Our battery solutions all come with a 5 year warranty and have an expected 10-12 year first life [80% capacity left].
Kalmar electrification journey
Learn more about our journey towards electrification by watching our videos on the Green Chair.
よくあるご質問
私のKalmar電動リーチスタッカーにはどのバッテリーを選べばよいですか？
カルマーは、現在の作業サイクルに基づいて、お客様の電動リーチスタッカーにどのバッテリーオプションと充電ソリューションが適しているかを判断するお手伝いをいたします。
電動リーチスタッカーのバッテリーを充電するにはどうすればよいですか？
さまざまなバッテリー充電ソリューションがあり、各ユニットには異なる充電容量と充電ポイントの数を選択できます。適切なバッテリーソリューションを選択したら、カルマーはお客様と協力して、お客様の運転サイクルと電気フリートに最適な充電ソリューションを特定できます。
私のリーチスタッカーのバッテリー充電状況と状態をどのように監視できますか？
Kalmarバッテリー監視システムは、お客様のバッテリーソリューションの電圧、温度、冷却水、電流の流れを継続的に監視し、その寿命期間中、最適に動作することを保証し、お客様のために電力を管理します。このシステムは、回収されたエネルギーをバッテリーパックに戻すことでバッテリーの充電も制御し、利用可能な電力を可能な限り効率的に使用できるようにします。この情報は、Kalmar Insightを通じてアクセスできます。
グリーン・スチールとは何ですか？
グリーン鋼は、従来の方法で作られた鋼と同じくらい丈夫で弾力性がありますが、その製造中に使用される炭素は大幅に少なくなっています。グリーン鋼は、リサイクルされた鋼から作られ、化石燃料を使用しない電力とバイオガスを使用して生産されるため、発生する炭素排出量が大幅に削減されます。
